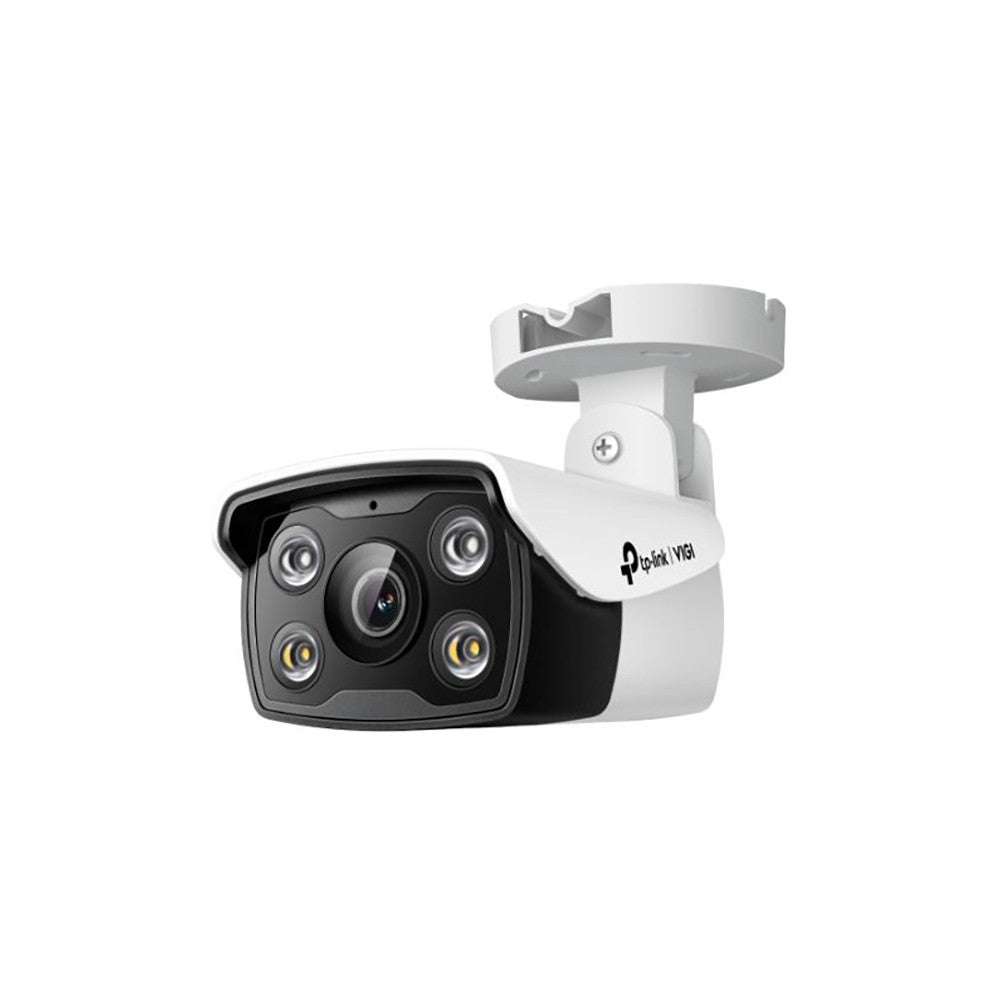

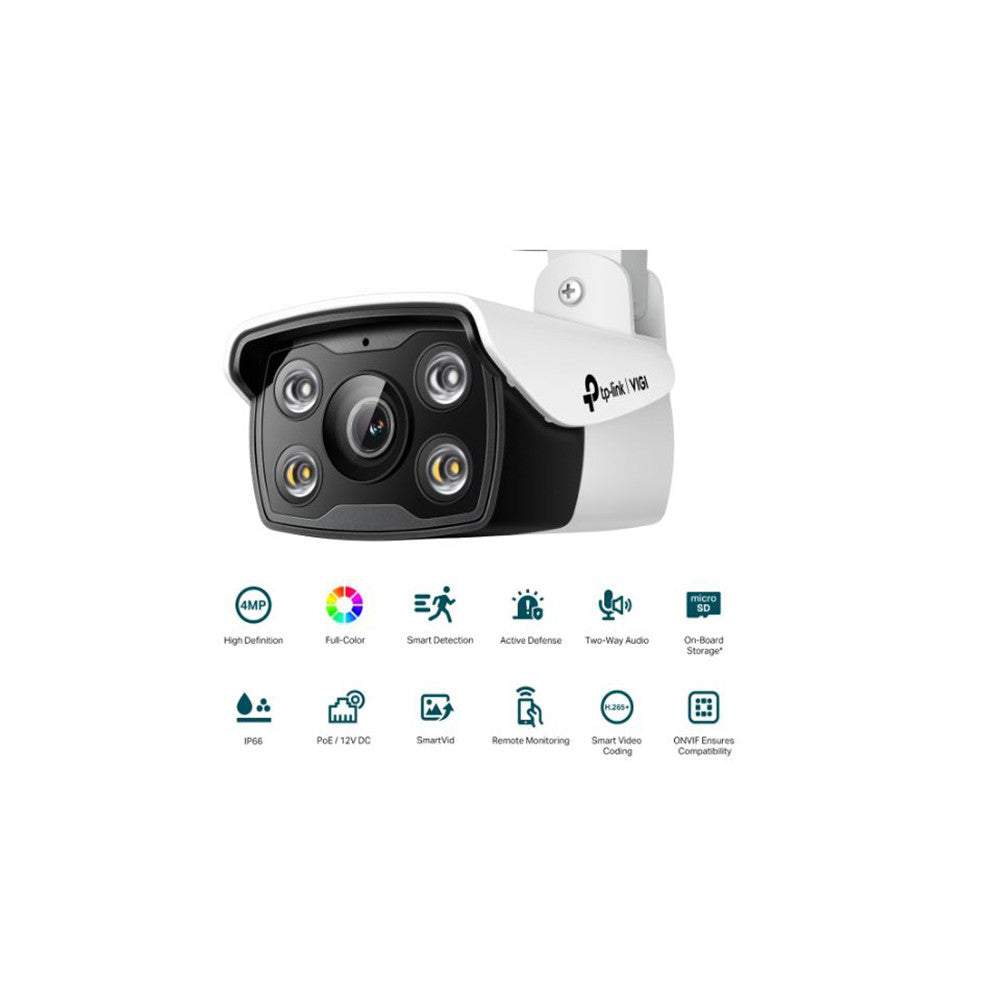

VIGI C340 4MP / VIGI C330 3MP Outdoor Full-Color Bullet Network Camera

- Product Name : VIGI C340 4MP (2.8MM / 4MM / 6MM) / VIGI C330 3MP (2.8MM / 4MM / 6MM) Outdoor Full-Color Bullet Network Camera

- Lens Mount: M12

- Audio Communication: Two-Way Audio

- Certifications: CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

> Application:

● CCTV

● NVR

● DVR

> Prameter:

● Power Supply: 12V DC ± 5%, 5.5mm Coaxial Power Plug

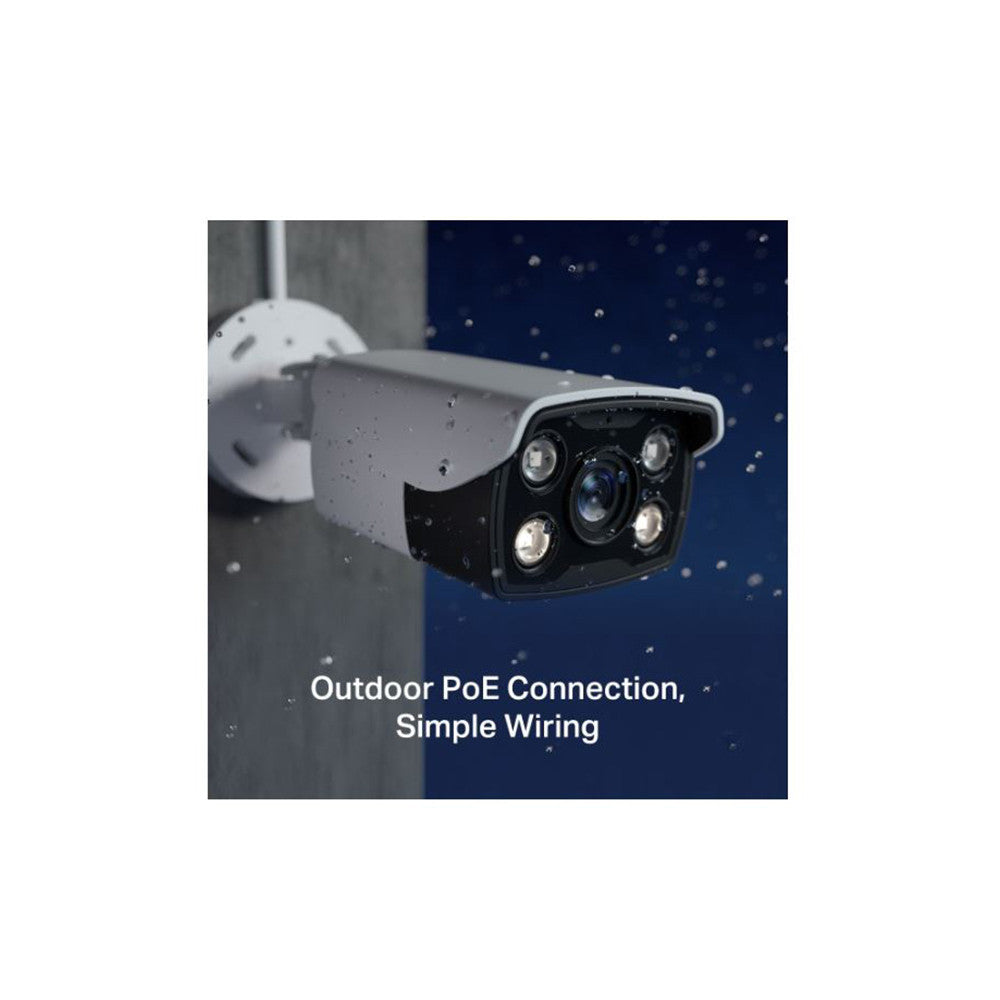

PoE (802.3af/at, class 0)

● Power Consumption: 12V DC: Max 7.5W

PoE: Class 0

-VIGI C340 4MP

● FOV:

2.8mm:

Horizontal FOV: 102°, Vertical FOV: 55°, Diagonal FOV: 122°

4mm:

Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°

6mm:

Horizontal FOV: 50°, vertical FOV: 27°, Diagonal FOV: 59°

● DORI Distance:

2.8 mm

Detect: 64 m (209 ft)

Observe: 27 m (87 ft)

Recognize: 13 m (42 ft)

Identify: 6 m (21 ft)

4 mm

Detect: 80 m (262 ft)

Observe: 33 m (109 ft)

Recognize: 16 m (52 ft)

Identify: 8 m (26 ft)

6 mm

Detect: 128 m (420 ft)

Observe: 53 m (175 ft)

Recognize: 26 m (84 ft)

Identify: 13 m (42 ft)

Angle Adjustment (Manual)

Range Pan: -90° to 90°,

Tilt: -90° to 90°

● Range: Pan: -90° to 90°, / Tilt: -90° to 90°

● IR LED: Quantity: 2

Range: 30m

Wavelength: 850nm

● Main Stream: Frame Rate：

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

Resolution:

2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

-VIGI C330 3MP

● FOV:

2.8 mm:

Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4 mm:

Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

6 mm:

Horizontal FOV: 55.1°, Vertical FOV:30.2°, Diagonal FOV: 64°

● DORI Distance:

2.8 mm:

Detect: 52 m (170 ft)

Observe: 22 m (71 ft)

Recognize: 10 m (34 ft)

Identify: 5 m (17 ft)

4 mm:

Detect: 70 m (230 ft)

Observe: 29 m (96 ft)

Recognize: 14 m (46 ft)

Identify: 7 m (23 ft)

6 mm:

Detect: 100 m (327 ft)

Observe: 41 m (136 ft)

Recognize: 20 m (65 ft)

Identify: 10 m (33 ft)

● FREE shipping fee with minimum order

● Cash on Delivery (COD) is available

● Please Choose the Correct variation,so we can avoid mistakes.

● If the item you received is defective, please contact us immediately.(we have local sevice station)

● Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.

● Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

> Delivery Period

● 2-4 days Metro Manila

● 3-7 days Provincial

> Feedback

● We maintain high standards of excellence and strive for 100% customer satisfaction! Positive Feedback is very important to us, but if you don't want to leave a Positive Feedback. We hope that you can contact us immediately before you give us a neutral or negative feedback,so that we can satisfactorily address your concerns. Thank you!

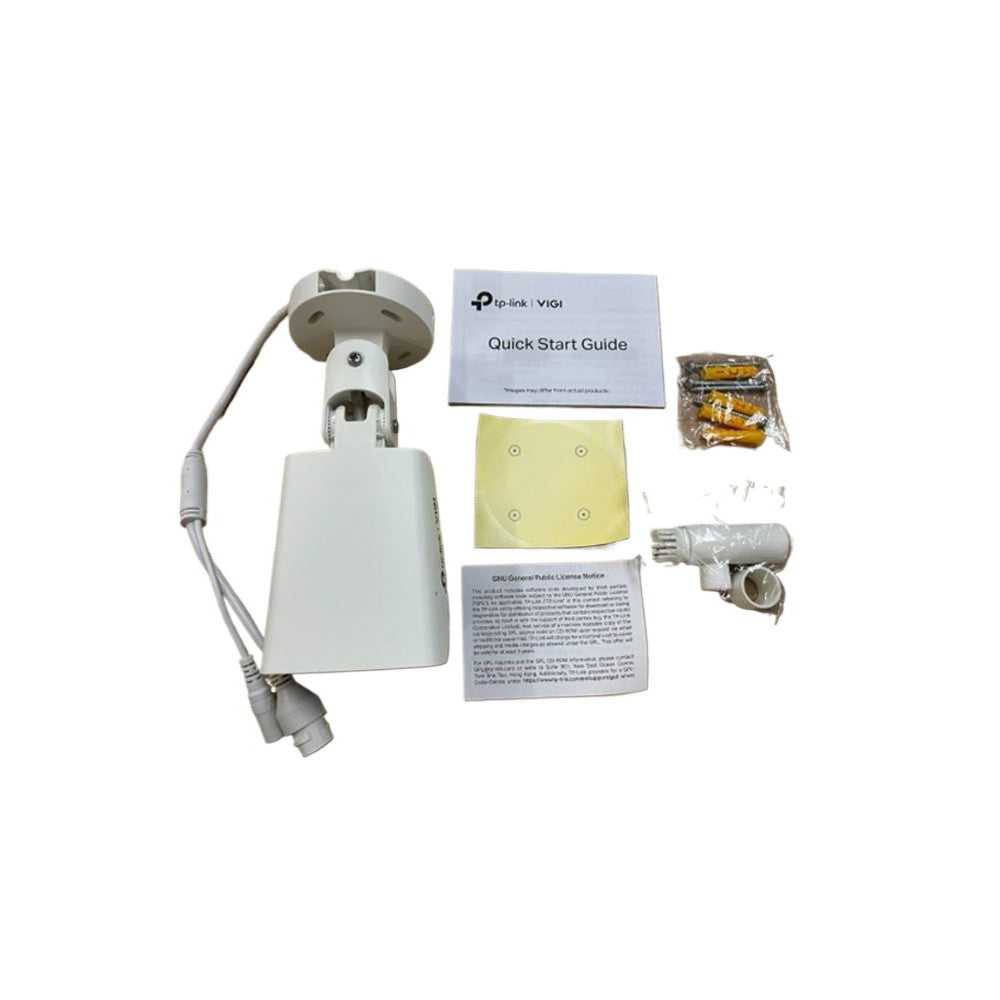

> Package List:

1X VIGI Network Camera

1X Quick Start Guide

1X Waterproof Cable Attachments

1X Mounting Accessories (Screws, Drywall Anchors, Hex Key)

#TPLINK #CCTV #VIGI
