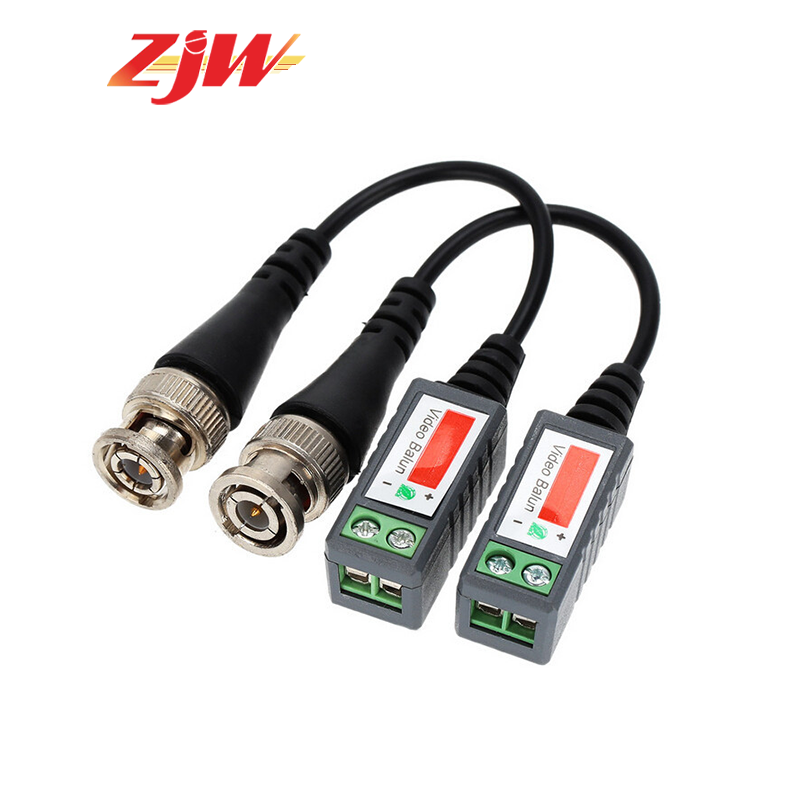

ZJW 1 pair 1080P AHD/HD-CVI/TVI/CVBS HD Video Balun Transmitter Cat5 Cat6 Video Balun
Reliable shipping
Flexible returns
- Brand Name : ZJW
- Product Name : TVI/CVI/AHD/CVBS Video Balun
- Material : PVC
> Application:
● CCTV
● CATV
> Features:
● 100% Brand New and high quality
● Single channel passive video balun
● Video transmission via UTP CAT5 cable
● 10-20%25 wire costs saved
● Full-motion CCTV video at distances up to 2000 ft
● Outstanding interference rejection and transient protection
● Male BNC allows connection directly to the camera or DVR
● No power required
● Save lots of Extra Cable Money
> Parameter:
● Video Frequency respons:DC-6Mhz Conmmon-mode/Differential-mode Rejection:15Khz 6Mhz 60dB
● Audio/data: NO
● Power: NO
● Impedance: Coax,male BNC
● Block or UTP RJ45
● Wire type: One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal. DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
● Control: NO
● UTP Port: Terminal Block
● Environment: Temperature:-10~+50 Humidity:0~95%
> Note:
● FREE shipping fee with minimum order
● Cash on Delivery (COD) is available
● Please Choose the Correct variation,so we can avoid mistakes.
● If the item you received is defective, please contact us immediately.(we have local sevice station)
● Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
● Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
> Delivery Period
● 2-4 days Metro Manila
● 3-7 days Provincial
> Feedback
● We maintain high standards of excellence and strive for 100% customer satisfaction! Positive Feedback is very important to us, but if you don't want to leave a Positive Feedback. We hope that you can contact us immediately before you give us a neutral or negative feedback,so that we can satisfactorily address your concerns. Thank you very much!
> Package List:
● 1 pair Video balun
