HTB-3100 Media Converter Netlink Fiber Transceiver Fiber Converter 20km 10/100M A/B
Reliable shipping
Flexible returns
Feature:
> Overview:
It can save half of the fiber,the data on a single fiber and the 10/100 m rate of receiving and sending,where the optical fiber resource is very applicable
- Brand Name : ZJW
- Product Name : 10/100Mbps A/B Fiber Optic Tranceiver/Converter
- Single-Mode,Single Fiber
- Connector type : SC/UPC
- Material: Metal
- Fixed internal diameter: 18MM
> Application:
● Telecom Maintenance
● CCTV Maintenance
● Comprehensive cable construction system
● Optical instruments research and development
● Optical communication education and lab testing
● Other optical project
> Feature:

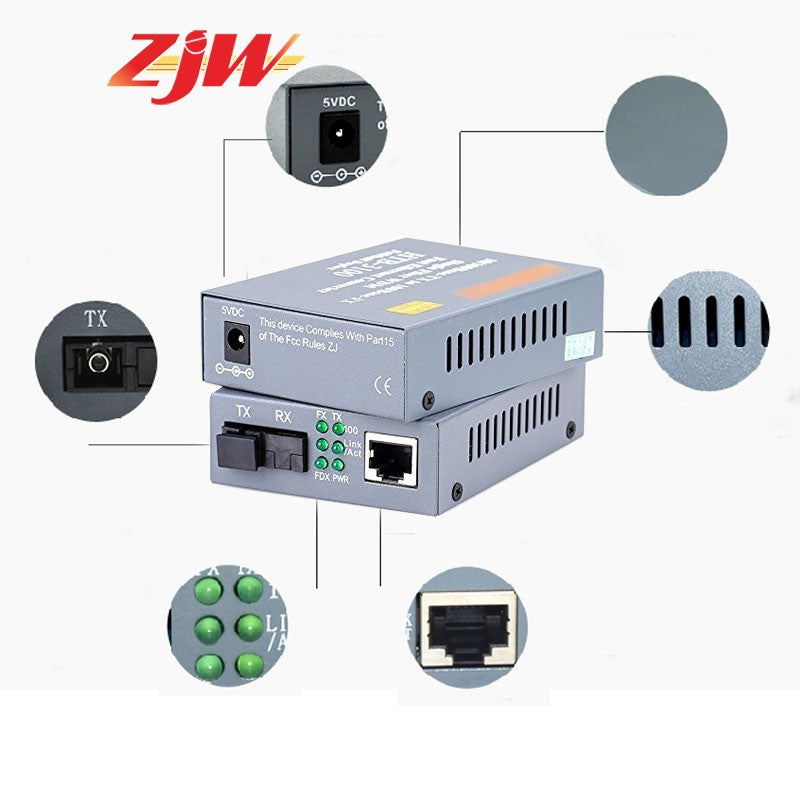

● An RJ45 ports and a single-fiber SC optical port , to achieve optical signal conversion between 10/100base TX twisted pair (Ethernet )and 100base FX (fiber optic) ;
● Core optical fiber can be completed in just one way signal transmission compared to dual fiber optic data transmission mode to improve the quantity doubled ;
● Compliance with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX, 100Base-FX standards
● Has 10M/100M adaptive capacity ;
● Ethernet interface can adaptively direct line / crossover cable connection ;
● Support full / half duplex mode ;
● Support IEEE802.3X duplex flow control and half-duplex backpressure flow control
● Supports broadcast storm prevention function ;
● 1916 Byte support large data frame ( optional ) ;
● Built- in lightning protection circuit , which can greatly reduce the damage caused by lightning induction ;
● UTP up to 100 meters ; longest 100 km single-mode fiber ;

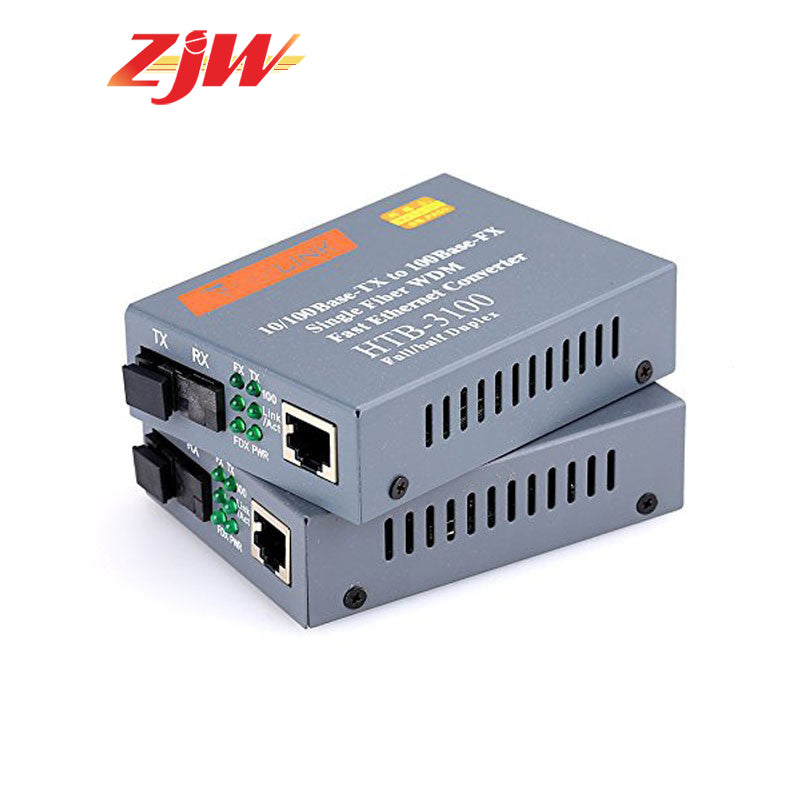

● There are six LED indicators : Power, TX 100, TX Link / Act, FX 100, FX Link / Act, FDX / Col; easy to monitor the working
status of the transceiver and determine the cause of the fault ;
● There are external , internal power supply of two types : AC100 ~ 265V / DC5V switching power supply ;
● Transceiver Dimensions: External power 70 × 26 × 93mm; built-in 120 × 30 × 140mm.
● outer Dimensions: 95mm × 71mm × 25mm
> Note:
● FREE shipping fee with minimum order of P500
● Cash on Delivery (COD) is available
● Please Choose the Correct variation,so we can avoid mistakes.
● If the item you received is defective, please contact us immediately.(we have local sevice station)
● Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
> Delivery Period
● 2-4 days Metro Manila
● 3-7 days Provincial
> Feedback
We maintain high standards of excellence and strive for 100% customer satisfaction!
Positive Feedback is very important to us, but if you don't want to leave a Positive Feedback.
We hope that you can contact us immediately before you give us a neutral or negative feedback,
so that we can satisfactorily address your concerns. Thank you very much!
> Package includes:
1 * 10/100Mbps A/B Fiber Optic Transceiver/Converter
1(2) x 5V1A Power Supply
#fiber convert
Package list:
1.HTB-3100 1pcs A side,1pcs B side, or A Side+B Side
2.Power Adapter*1 or 2PCS
