Mercury MS09CPS / MCS1516D-P Gigabit PoE switch network cable power supply camera monitoring
Reliable shipping
Flexible returns
- Product Name : Mercury MS09CPS / MCS1516D-P Gigabit PoE switch network cable power supply camera monitoring
- Color : Black
> Application:
● CCTV
● CATV
> Features :
● Compatible with standard POE design
● Wiring is simple and fast
● Each port can achieve Gigabit non-blocking line-speed forwarding
● Data transmission can reach up to 260 meters
● Security monitoring networking requirements for micro-enterprises
● Ensuring stable and smooth transmission of monitoring data over long distances
● Plug and play, simple networking
● Full Gigabit ports, data transmission is more efficient
> Parameter:

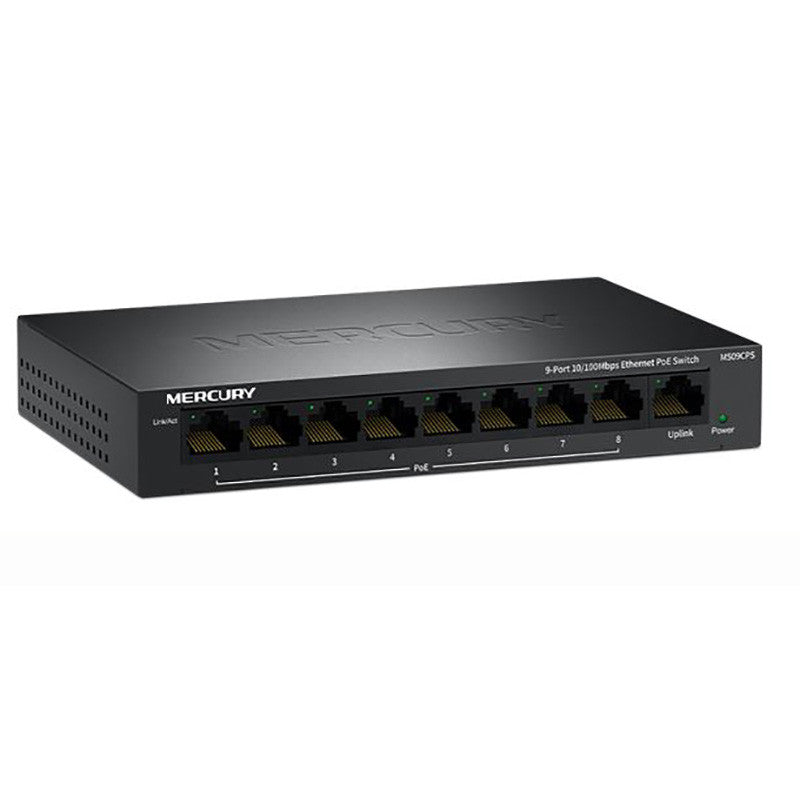

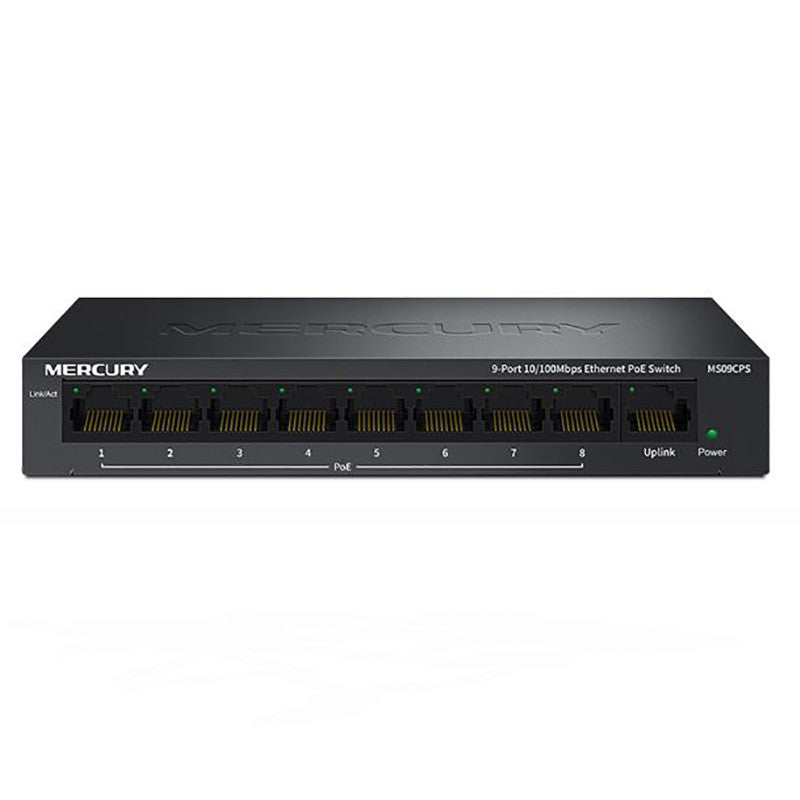

- MS09CPS
● Web Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
● port: 9 10/100Mbps RJ45 ports, of which ports 1-8 support PoE function, 1 Uplink port
● Indicator Lights: Each device has a Power indicator lightEach port has a Link/Act indicator
● Network media: 10BASE-T: Category 3, 4, 5 unshielded twisted pair (≤ 100 meters) / 100BASE-TX: Category 5 or above
unshielded twisted pair (≤ 100 meters)

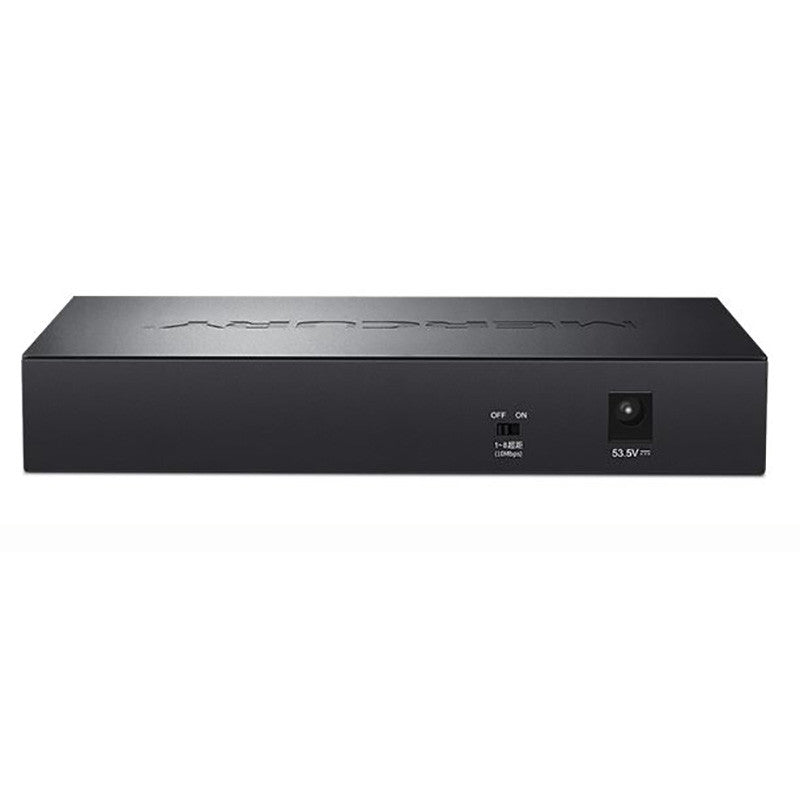

● Mode switch: An ultra-distance mode switch, when turned on, ports 1 to 8 work at a rate of 10Mbps and can transmit up to
260 meters.
● performance: Store and Forward Support 2K MAC address table depth
● Usage Environment: Working temperature: 0℃～40℃ / Storage temperature: -40℃～70℃ / Working humidity: 10%~90% RH non-condensing / Storage humidity: 5%~90% RH non-condensing
● Input Power: 53.5VDC 1.22A
● Dimensions (L*W*H): 158mm*100mm*25mm

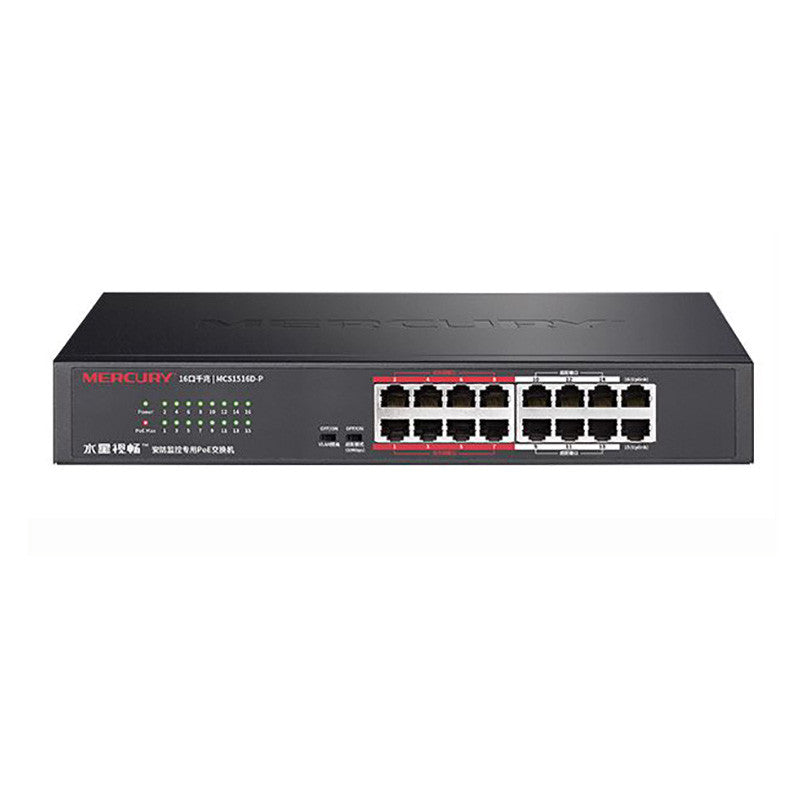

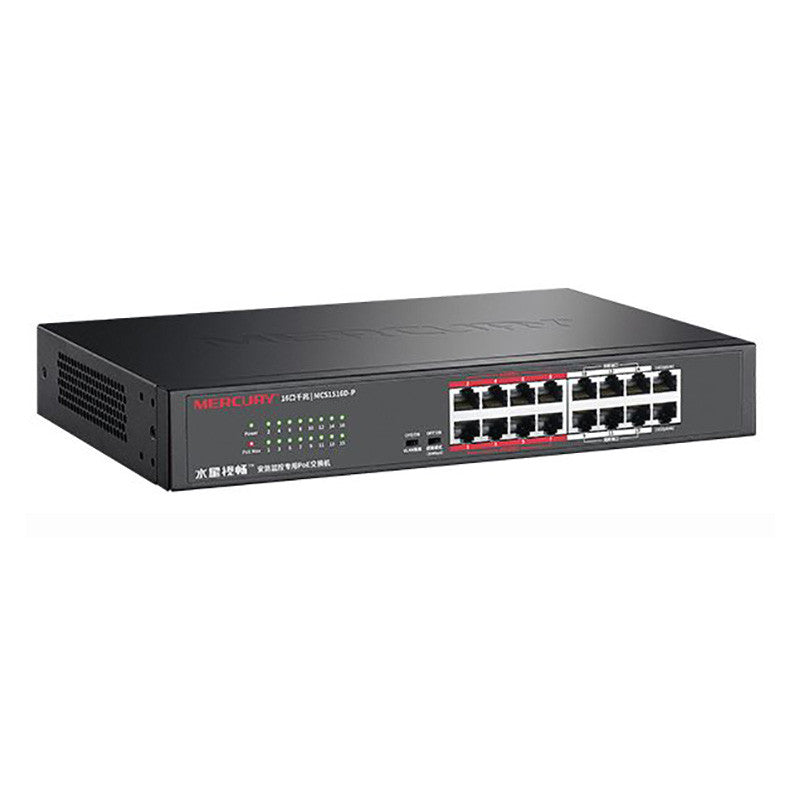

- MCS1516D-P
● Web Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
● port: 16 10/100/1000Mbps RJ45 ports, ports 1 to 14 support PoE function
● Indicator Lights: Each Gigabit port has a dual-color indicator light / Each device has 1 Power and PoE Max indicator light
● Network media: 10BASE-T: Category 3, 4, 5 unshielded twisted pair / 100BASE-TX: Category 5 and above unshielded twisted pair / 1000BASE-T: Category 5e and above unshielded twisted pair
● Mode switch: Ultra-distance mode switch: When turned on, ports 9 to 14 work at a rate of 10Mbps, and the maximum transmission distance is 260m / VLAN isolation switch: After it is turned on, ports 1 to 14 are isolated from each other and can only communicate with the Uplink port
● performance: Store and Forward / Support 16K MAC address table depth
● Usage Environment: Working temperature: 0℃～40℃ / Storage temperature: -40℃～70℃ / Working humidity: 10%~90% RH non-condensing / Storage humidity: 5%~90% RH non-condensing

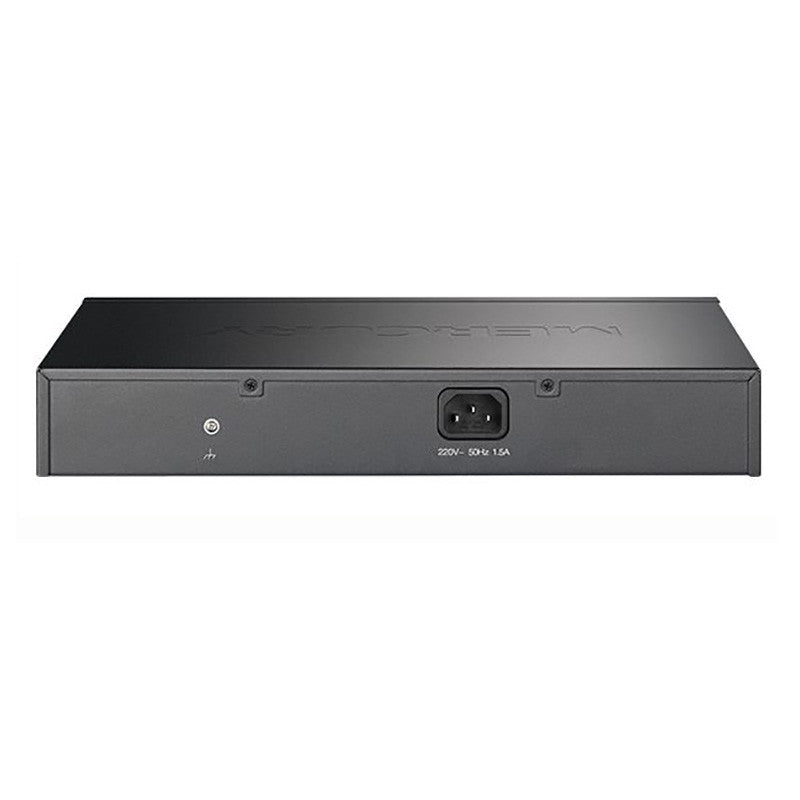

● power supply : Built-in power supply, maximum output power 128W
● Dimensions (L*W*H): 294mm*180mm*44mm
> Delivery Period
● 2-4 days Metro Manila
● 3-7 days Provincial
> Package List:
- 1x POE SWITCH
#MERCURY #POE #GIGABIT
