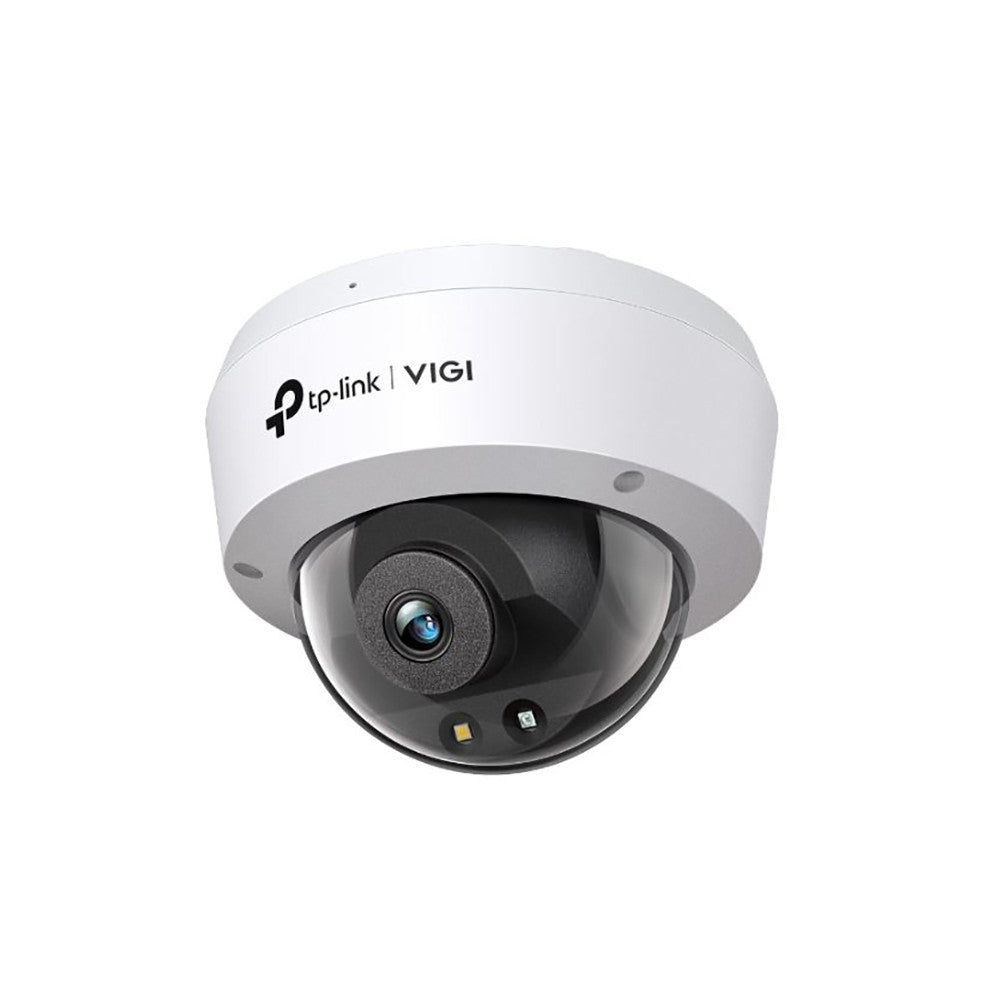

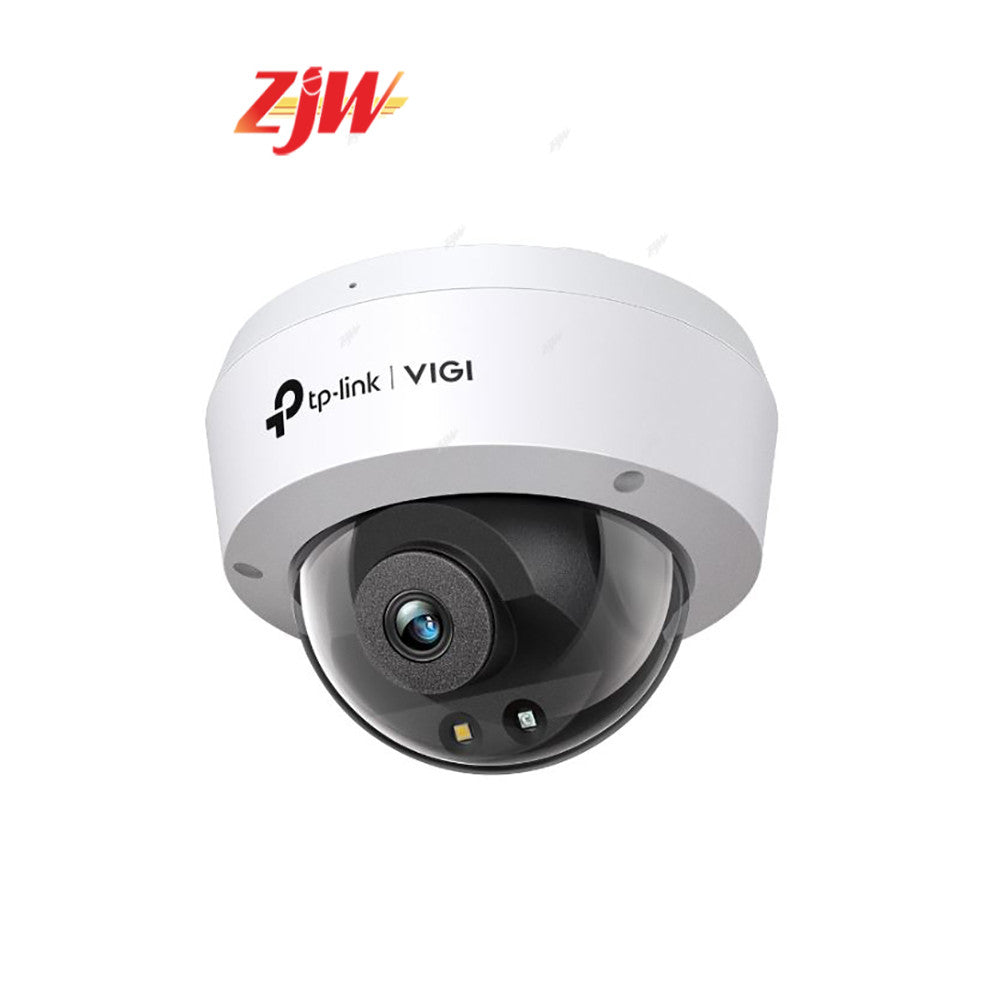

VIGI C230 3MP / VIGI C240 4MP Full-Color Dome Network Camera

- Product Name : VIGI C230 3MP / VIGI C240 4MP Full-Color Dome Network Camera

- Color: White

> Application:

● CCTV

● DVR

> Prameter:

- C230 3MP

● Image Sensor: 1/2.8” Progressive Scan CMOS

● hutter Speed: 1/3 to 1/10000 s

● Minimum Illumination Color: 0.005 Lux; 0 Lux with IR/White Light

● Focal Length: 2.8 mm/4 mm

● Aperture:2.8 mm: F1.6 / 4 mm: F1.6

● FOV:

2.8 mm: Horizontal FOV: 107.5°, Vertical FOV: 57.2°, Diagonal FOV: 128.7°

4 mm:Horizontal FOV: 89.1°, Vertical FOV: 45.1°, Diagonal FOV: 106.9°

● DORI Distance:

2.8 mm:

Detect: 52 m (170 ft)

Observe: 22 m (71 ft)

Recognize: 10 m (34 ft)

Identify: 5 m (17 ft)

4 mm:

Detect: 70 m (230 ft)

Observe: 29 m (96 ft)

Recognize: 14 m (46 ft)

Identify: 7 m (23 ft)

● Power Supply: 12V DC ± 5%, Max. 4.7 W, 5.5mm Coaxial Power Plug / PoE: 802.3af/at, class 0, Max. 5.5 W

- C240 4MP

● Image Sensor: 1/3” Progressive Scan CMOS

● Aperture: 2.8 mm: F1.6 / 4 mm: F1.6

● FOV:

2.8 mm:Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°

4 mm: Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°

● DORI Distance :

2.8 mm:

Detect: 64 m (209 ft)

Observe: 27 m (87 ft)

Recognize: 13 m (42 ft)

Identify: 6 m (21 ft)

4 mm:

Detect: 80 m (262 ft)

Observe: 33 m (109 ft)

Recognize: 16 m (52 ft)

Identify: 8 m (26 ft)

● Power Supply: 12V DC ± 5%, Max. 5.4 W, 5.5mm Coaxial Power Plug / PoE: 802.3af/at, class 0, Max. 6 W

● FREE shipping fee with minimum order

● Cash on Delivery (COD) is available

● Please Choose the Correct variation,so we can avoid mistakes.

● If the item you received is defective, please contact us immediately.(we have local sevice station)

● Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.

● Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

> Delivery Period

● 2-4 days Metro Manila

● 3-7 days Provincial

> Feedback

● We maintain high standards of excellence and strive for 100% customer satisfaction! Positive Feedback is very important to us, but if you don't want to leave a Positive Feedback. We hope that you can contact us immediately before you give us a neutral or negative feedback,so that we can satisfactorily address your concerns. Thank you very much!

> Package List:

1X VIGI Network Camera

1X Quick Start Guide

1X Waterproof Cable Attachments

1X Mounting Accessories
