ZJW 4/9/18 Channel 12V 5A/10A/20A/30A Fused Centralized Distributed Power Supply With Box
Reliable shipping
Flexible returns
- Brand Name : ZJW
- Product Name : 12V power supply w/ box
- Input : AC200-240V or AC100-120V
- Output:DC12V 5A/10A/20A/30A
- Power Output(Watt) :60W/120W/240W/360W
- Installation : Wall,outdoor & indoor,waterproof
> Application:
● LED light
● CCTV Cameras,PTZ Camera, IR Illuminator, Video Processor
● Security system
● Wireless Router, HUB, Switches
> Features:
● 100% Brand New and high quality
● Box's Material: Ironportability and storage
● General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
● Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
● High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
● Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
● Front mounted status LED.
● Safety cage protected transformer
> Parameter:
● OUTPUT DC Port: 4/9/18 Channel
● OUTPUT VOLTAGE: DC 12V
● RATED CURRENT: DC 5A/10A/20A/30A
● RATED POWER: 60W/120W/240W/360W
● INPUT VOLTAGE RANGE: AC 100-120V, AC 200-240V, 50Hz / 60Hz
● FREQUENCY RANGE: 47-63HZ
● ENVIRONMENT: WORKING TEMP -10~+60°C
● WORKING HUMIDITY: 20-90%RH non-condensing
● STORAGE TEMP,HUMIDITY: -20~+85°C,10-95%RH
● Shell Material: Metal case / Aluminum case
● Dimesion: 40x25x7cm(18 channel 30A)
● Weight :1.89kg(18 channel 30A)
> Note:
● FREE shipping fee with minimum order
● Cash on Delivery (COD) is available
● Please Choose the Correct variation,so we can avoid mistakes.
● If the item you received is defective, please contact us immediately.(we have local sevice station)
● Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
● Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
> Delivery Period
● 2-4 days Metro Manila
● 3-7 days Provincial
> Feedback
We maintain high standards of excellence and strive for 100% customer satisfaction! Positive Feedback is very important to us, but if you don't want to leave a Positive Feedback. We hope that you can contact us immediately before you give us a neutral or negative feedback,so that we can satisfactorily address your concerns. Thank you very much!
> Package List:

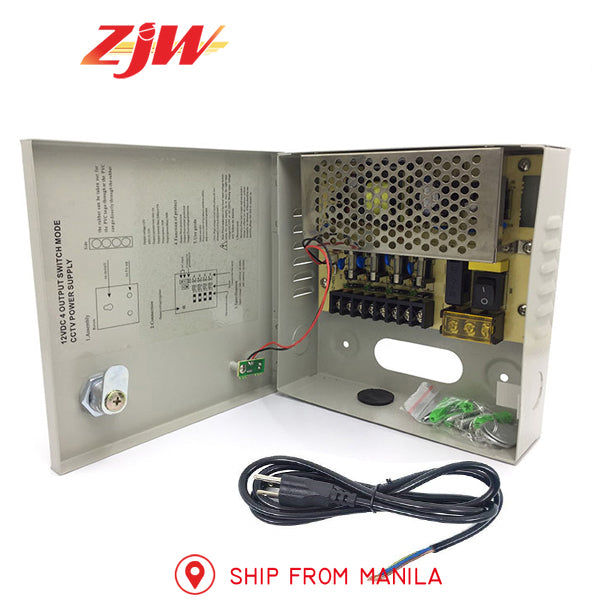

● 1 x 4/9/18 channel 12V 5A/10A/20A/30A power supply w/ box
● 1 x Lock Key
● 3 x Extra Fuse
● 1 x AC Power Cable
