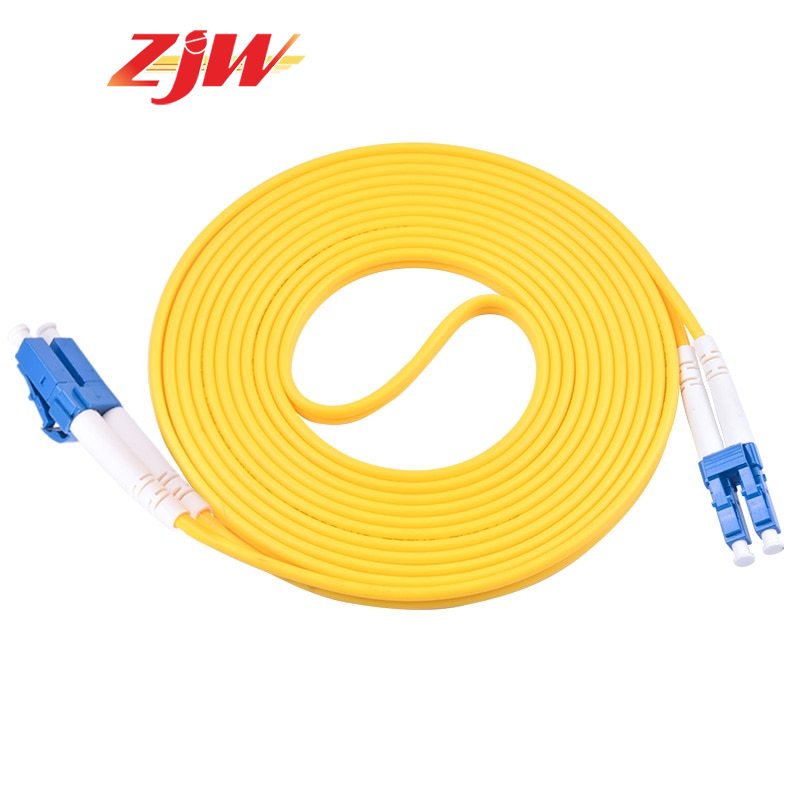

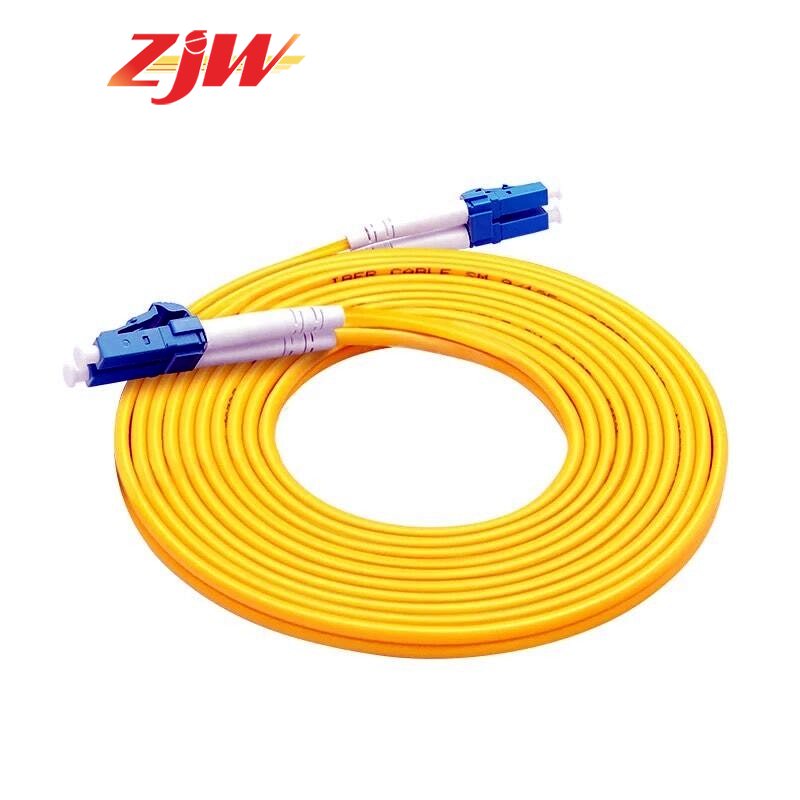

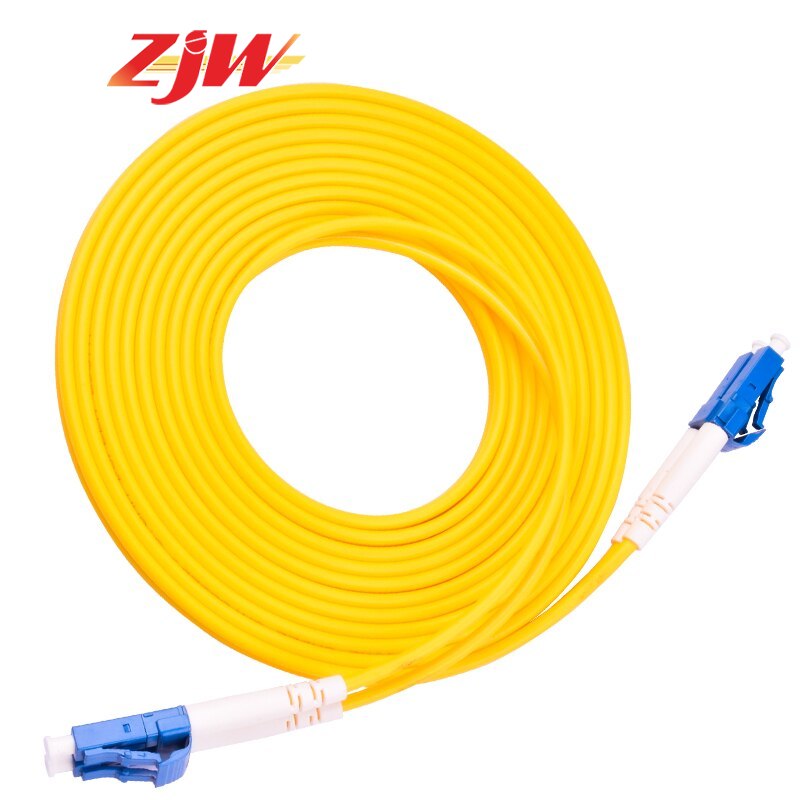

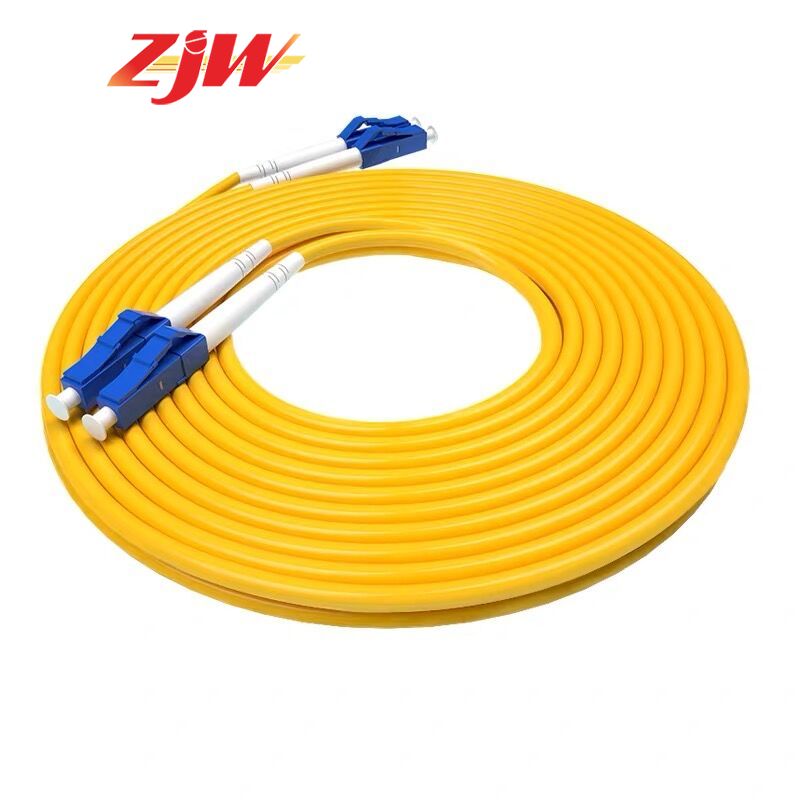

ZJW LC /UPC-LC/UPC 3m Duplex Single-Mode LC Fiber Optic Patch Cord Simplex 3.0mm Fiber Optic Cable
Reliable shipping
Flexible returns
- Brand Name : ZJW
- Dual LC to LC Fiber Patch Cord Jumper Cable SM Duplex Single Mode Optic for Network
- Length: 3m
- Connectors: LC to LC
- Core: Single Mode Fiber
- Density: Duplex
- Finish/Size: PC Polish
- Mechanical properties
- Interchangeability (dB): ≤ 0.1
- Vibration (dB): ≤ 0.1 (5 to 50Hz, 1.5mm)
- Tensile strength (dB): ≤ 0.1 (0 to 15Kg pull)
- The high temperature ≤ 0.2dB (+85 ° C for 50 hours)
- Low temperature ≤ 0.2dB (-40 ° C for 50 hours)
- Temperature cycling ≤ 0.2dB (-40 ° Cto 85 ° C, 5 cycles)
- Humidity ≤ 0.2dB (-25 ° C ~ 65 ° C, 93%)
> Applications :
● Internet Surf
● CATV
● Optical fiber communication systems
● Optical fiber data transmission
● Building network access
● Cabling system, ODF
● FTTX applications
> Features
● Core Type: Single-mode (SM: 9/125um)
● Cable Diameter: φ2.0mm
● Low insertion loss and back reflection loss
● Good echangeabilityGood Durability
● High temperature stability
● CE,ROHS,FCC
> Feedback
We maintain high standards of excellence and strive for 100% customer satisfaction! Positive Feedback is very important to us,
but if you don't want to leave a Positive Feedback. We hope that you can contact us immediately before you give us a neutral or
negative feedback, so that we can satisfactorily address your concerns. Thank you very much!
> Package includes:
1 x Fiber Optic Jumper Cable (without retail package)
